RIFENG PVC Conduit System has the advantages of high impact resistance, strong flame retardancy, and excellent cold bending performance. Thus, it offers a perfect solution for electrical safety in residential, commercial, and industrial sectors. RIFENG PVC Conduit System is proven to be durable with years of maintenance-free performance.
Key Features
Technical Specification
Performance Parameter
SDR
Product Category
| Term | Index | Term | Index | |||||||
| Densty | 1.35-1.55 | Maximum working temperature/C | 60 | |||||||
| Coefficient of linear expansion/(×10-5m/m.° C) | 6~12 | Thermal conductivity /[W/(m.K)] | 0.12~0.20 | |||||||
| Tensile strength /Mpa | 35~45 | Coefficient of friction | 0.45 | |||||||
| Elongation at break/% | 60~120 | Insulation resistance (Ω) | ≥ 108 | |||||||
| Bending strength/MPa | 65~110 | Dielectric strength/(kV/mm) | ≥ 2.0 | |||||||
| Compressive strength/MPa | 50~80 | Oxygen Index/% | ≥ 32 | |||||||
| Shore hardness D | 70~90 | Self-extinguishing time from fire/sec | ≤ 30 | |||||||
| Term | GY.205 | GY.305 | GY.405 | |||||||
| Cold Bending Performance(-5° C) | Ф16 bending radius 84mm | Ф20 bending radius 105mm | Ф25 bending radius 131mm | |||||||
| Insulation Index | No breakdown in AC2000V and 50 Hz within 15mins, Insulation resistance ≥ 100MΩ | |||||||||
| Ring Stiffness | 65 KN/m2 | 110 KN/m2 | 180 KN/m2 | |||||||
| Self-lgnitionTemperature | 600° C | 600° C | 600° C | |||||||
| Working temperature | -5 ～ 60℃ | -5 ～ 60℃ | -5 ～ 60℃ | |||||||
| Compressive performance | 320N | 750N | 1250N | |||||||
| Pipe | Classification | Working temperature | Application | |||||||
| 205 | Light | -5 ～ 60℃ | Suitable for laying in suspended ceilings,Ordinary walls and floors can also be used. | |||||||
| 215 | -15 ～ 60℃ | |||||||||
| 305 | Medium | -5 ～ 60℃ | Suitable for laying in concrete, walls and floors | |||||||
| 315 | -15 ～ 60℃ | |||||||||
| 405 | Heavy | -5 ～ 60℃ | Suitable for laying in concrete and floor in places with gravity | |||||||
| 415 | -15 ～ 60℃ | |||||||||
Products Overview

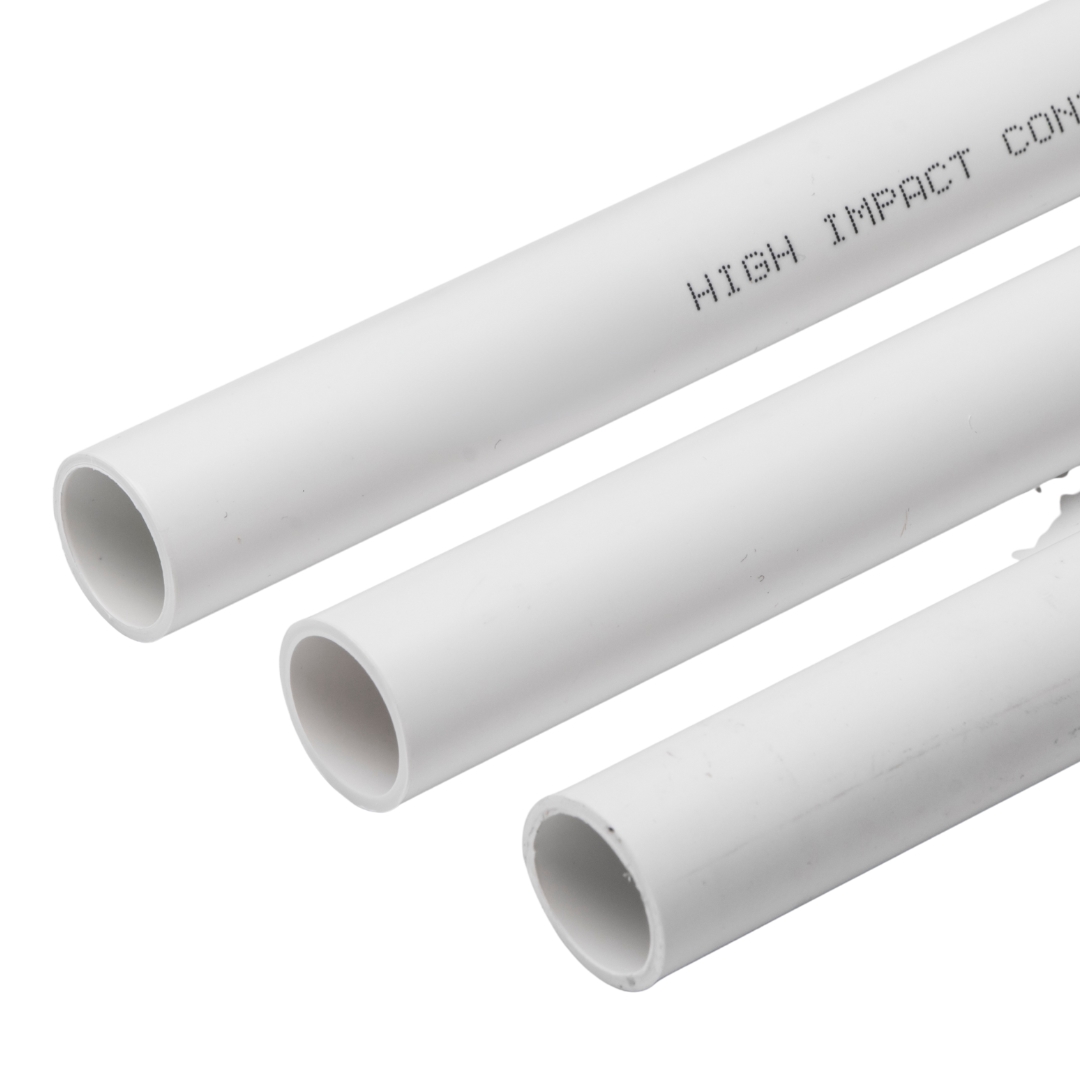

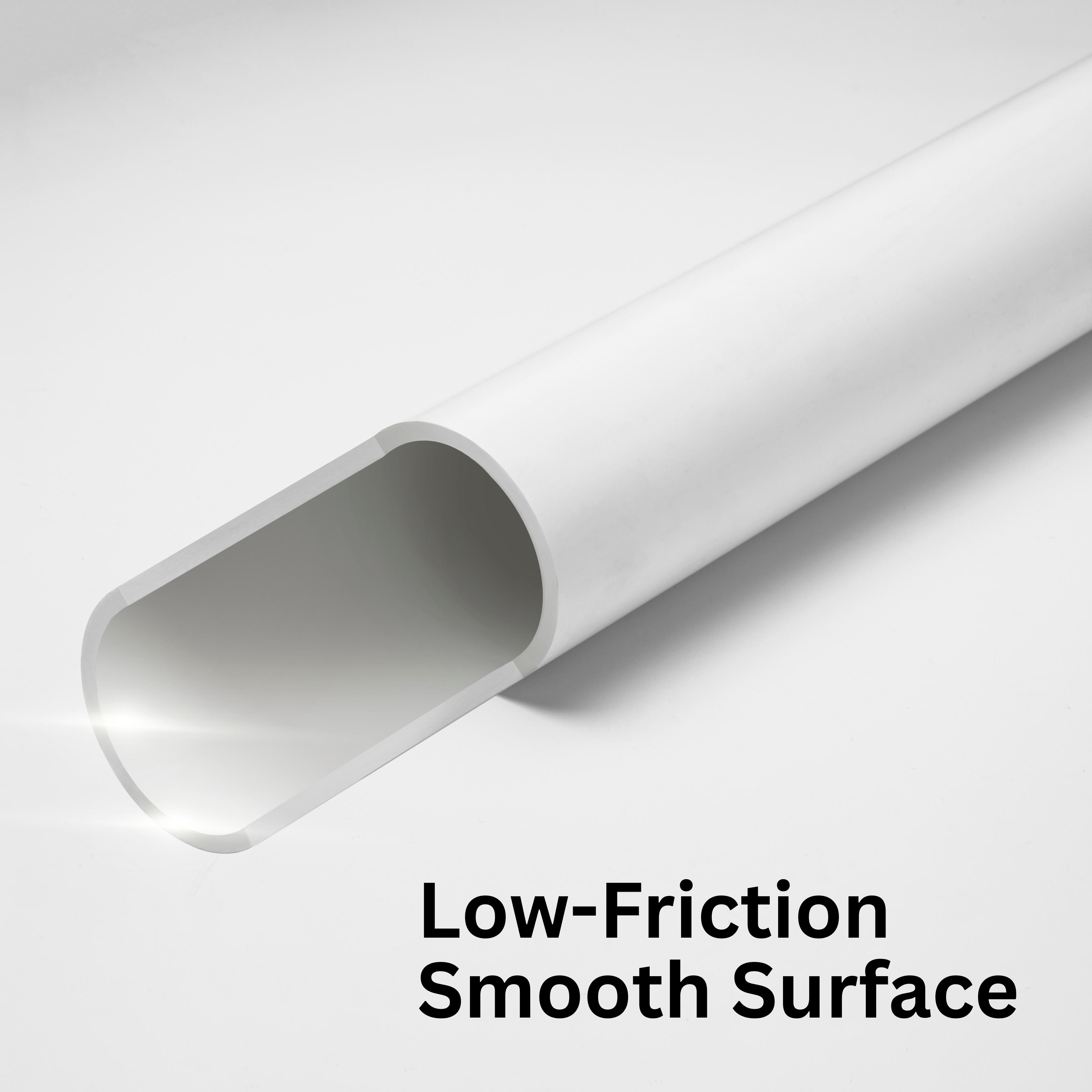

PVC Conduit Pipe
PVC Conduit Pipe GY.205
PVC Conduit Pipe GY.305
PVC Conduit Pipe GY.405

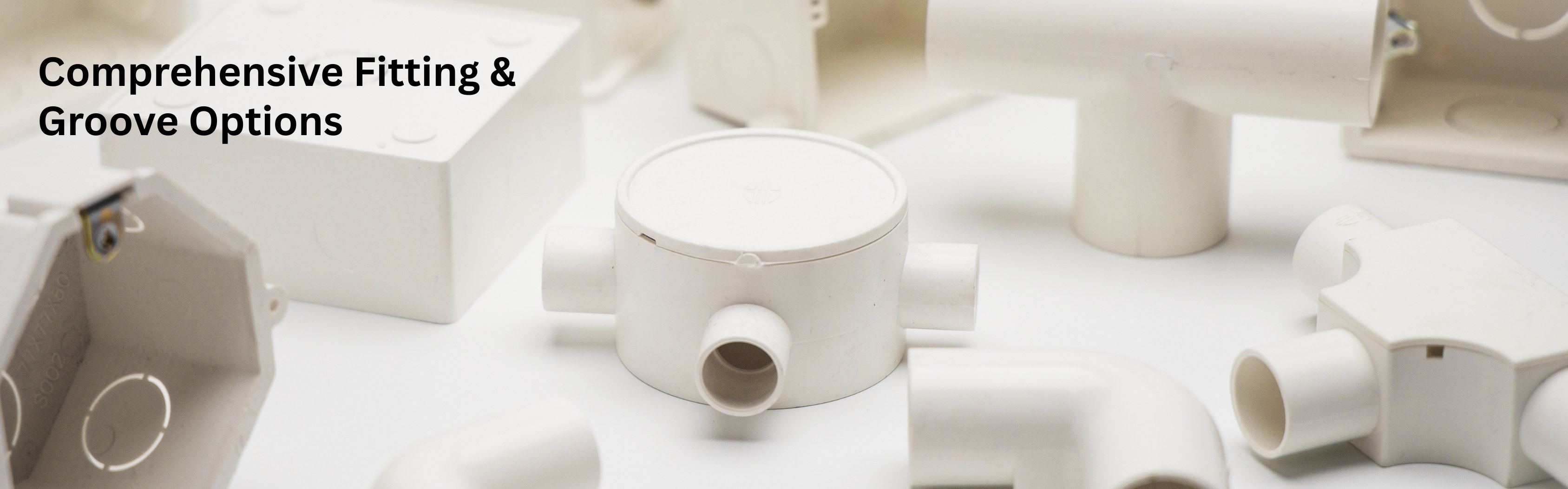

PVC Fitting

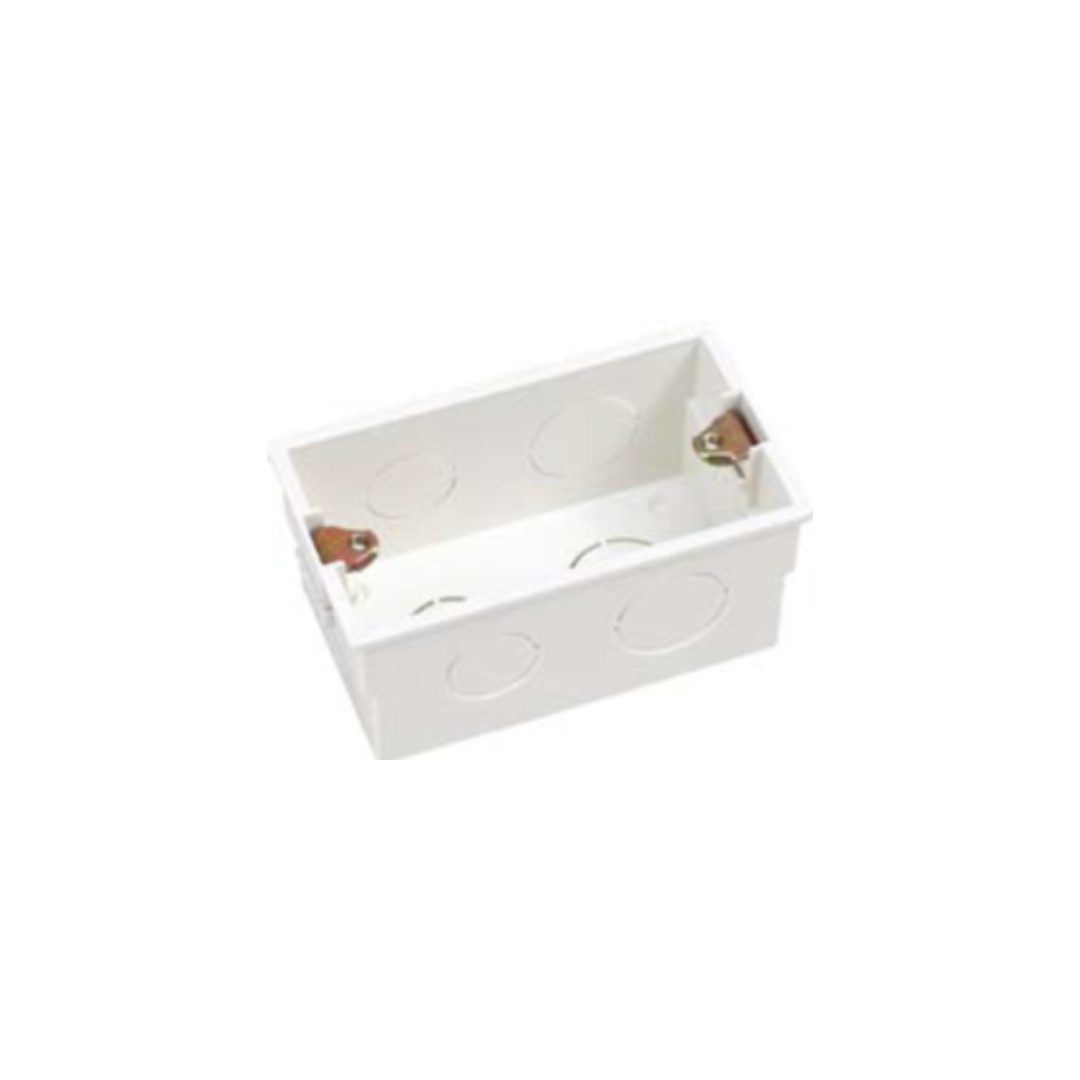

118 PVC Concealed Box
Concealed Gang Box

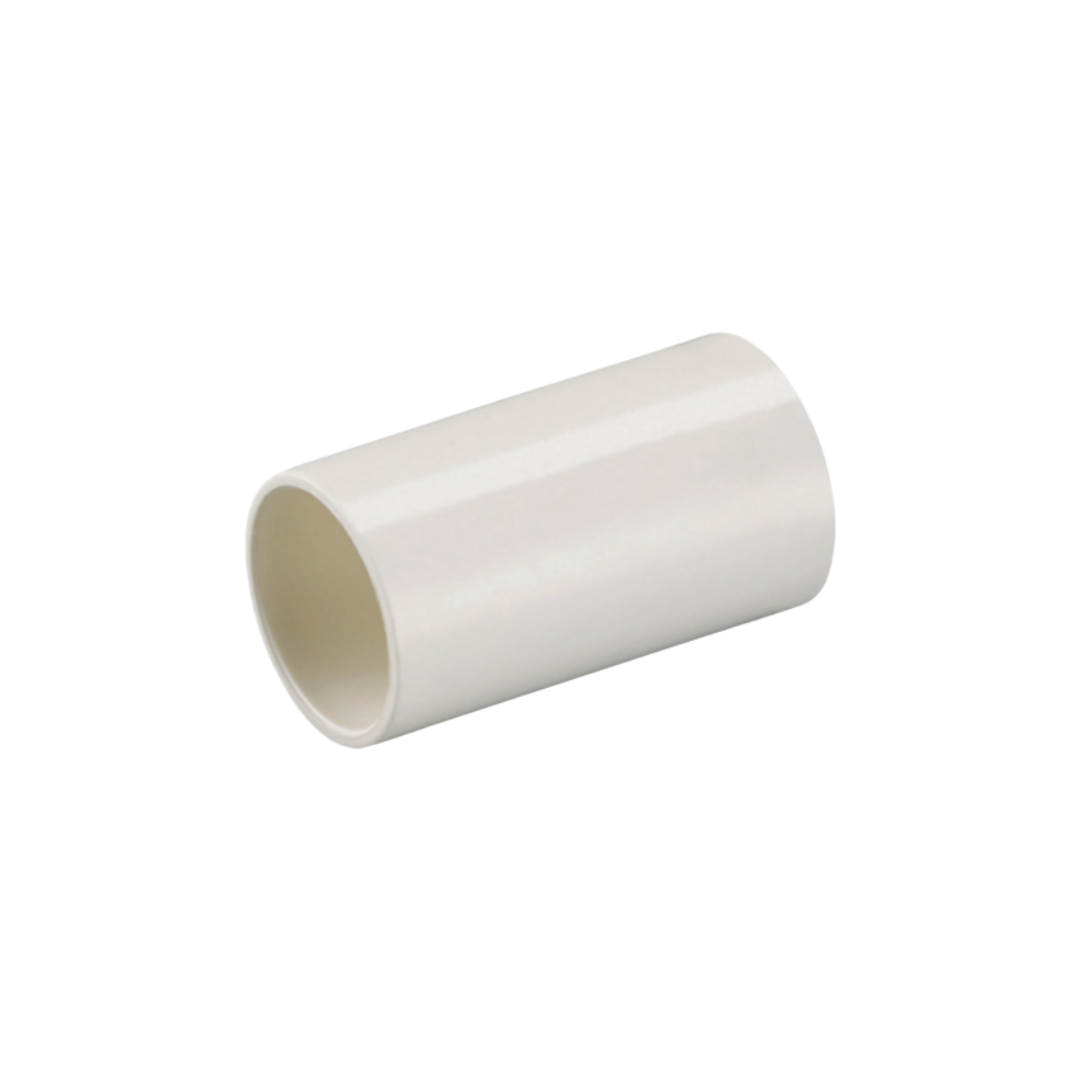

Coupling

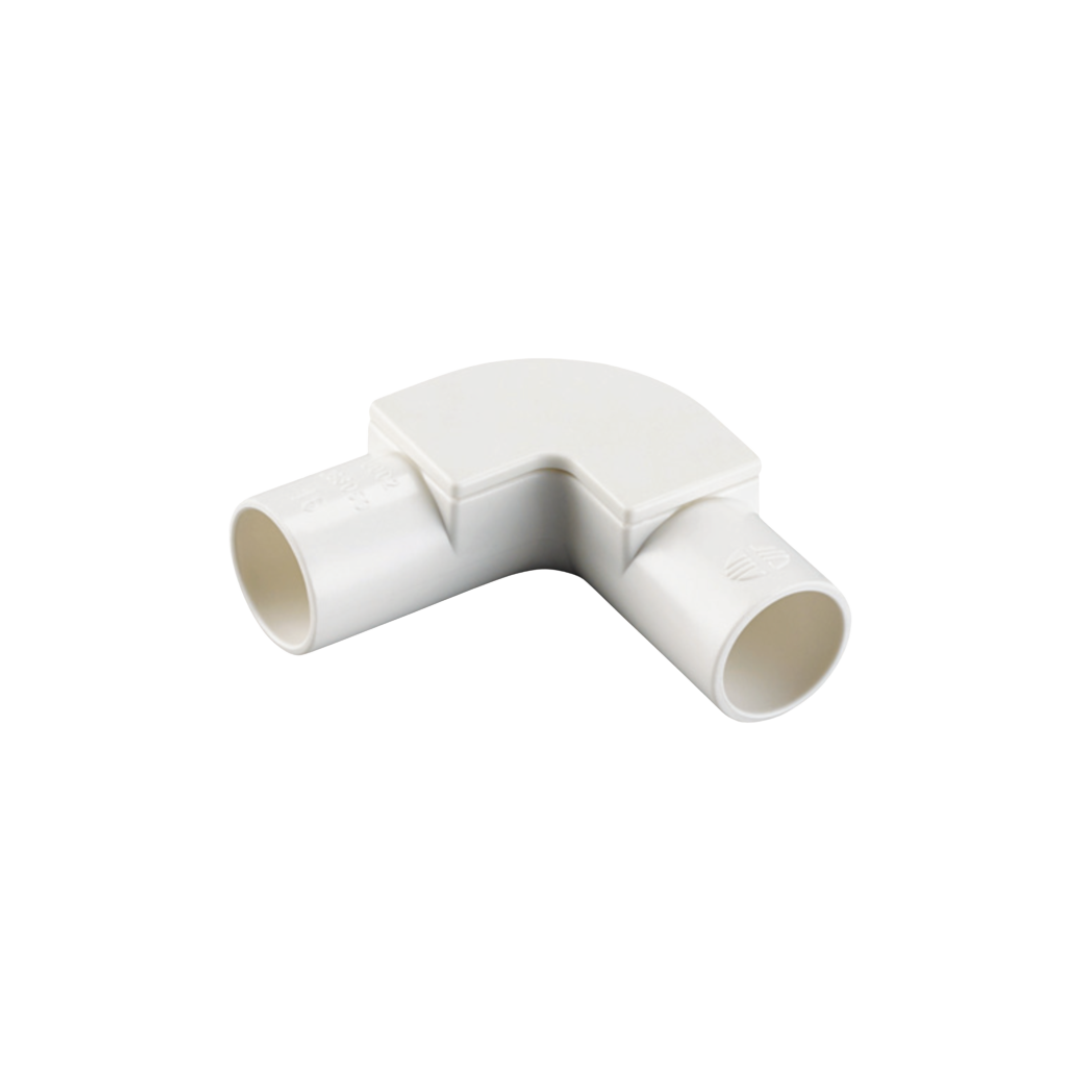

Elbow With Cover
Elbow
Four Way Through Round Junction Box
Inspection Tee
Lid Cover
Long Radius Bend

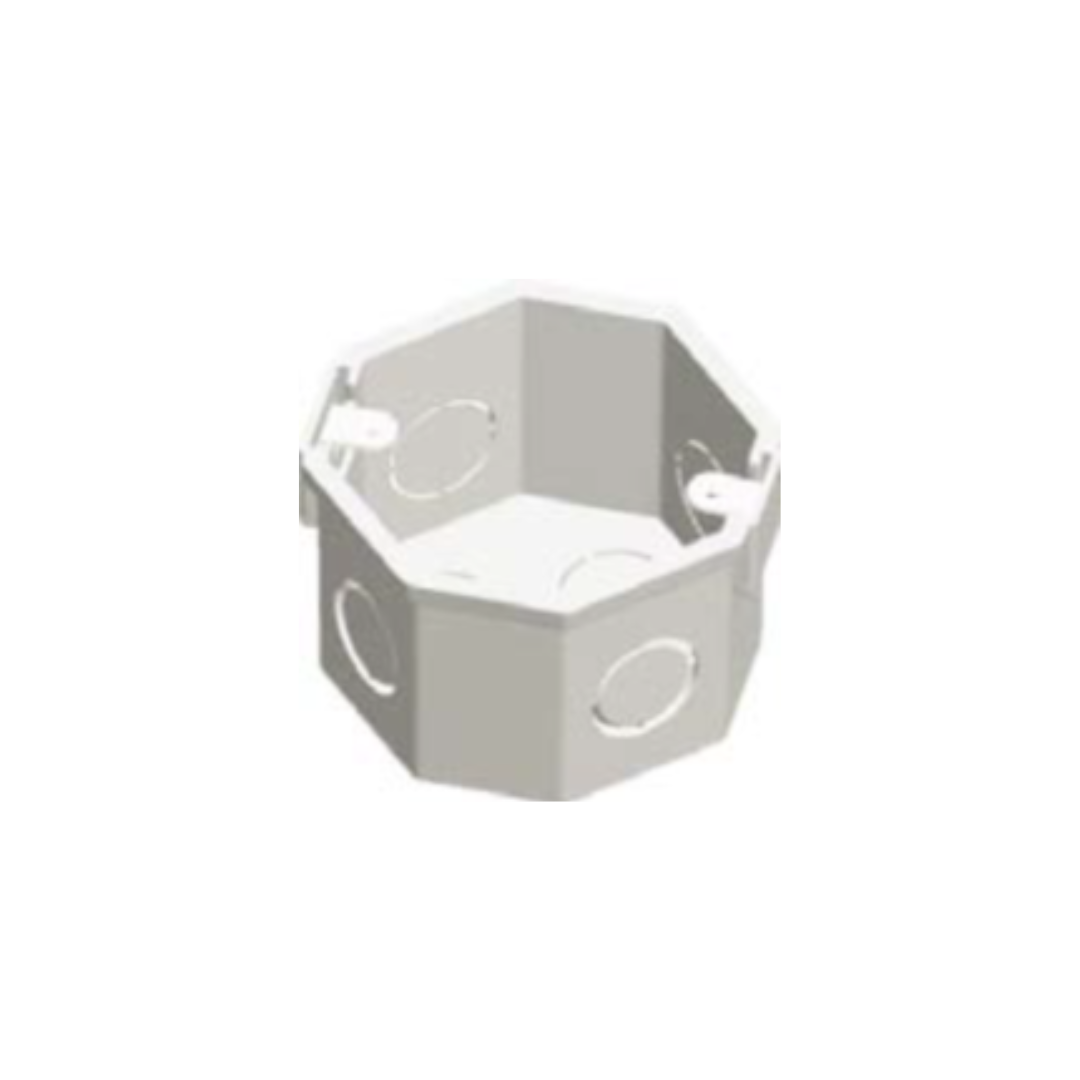

Octagonal Box
One Way Round Junction Box

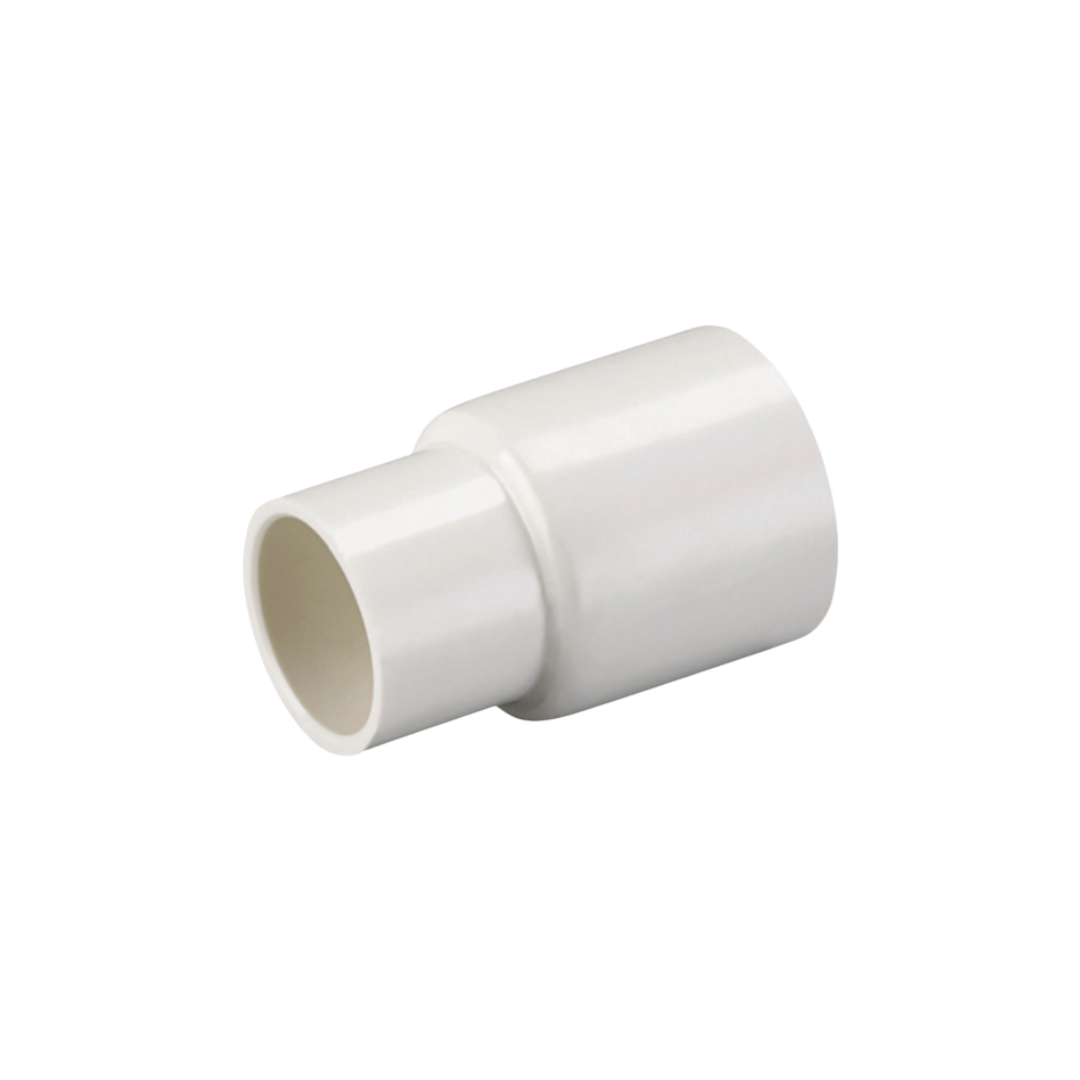

Reducing Coupling
Reducing Terminal Adapter

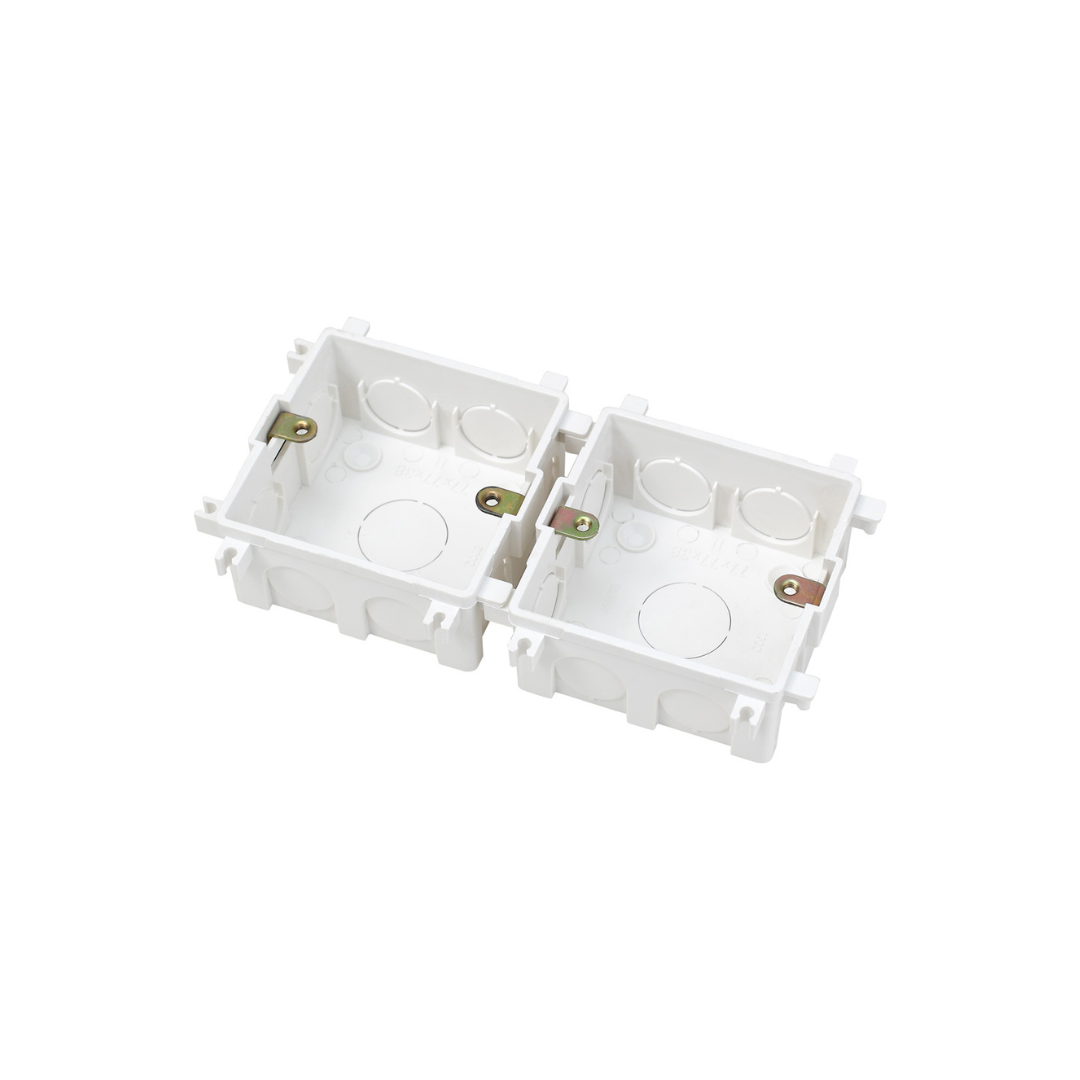

Snap Concealed Gang Box

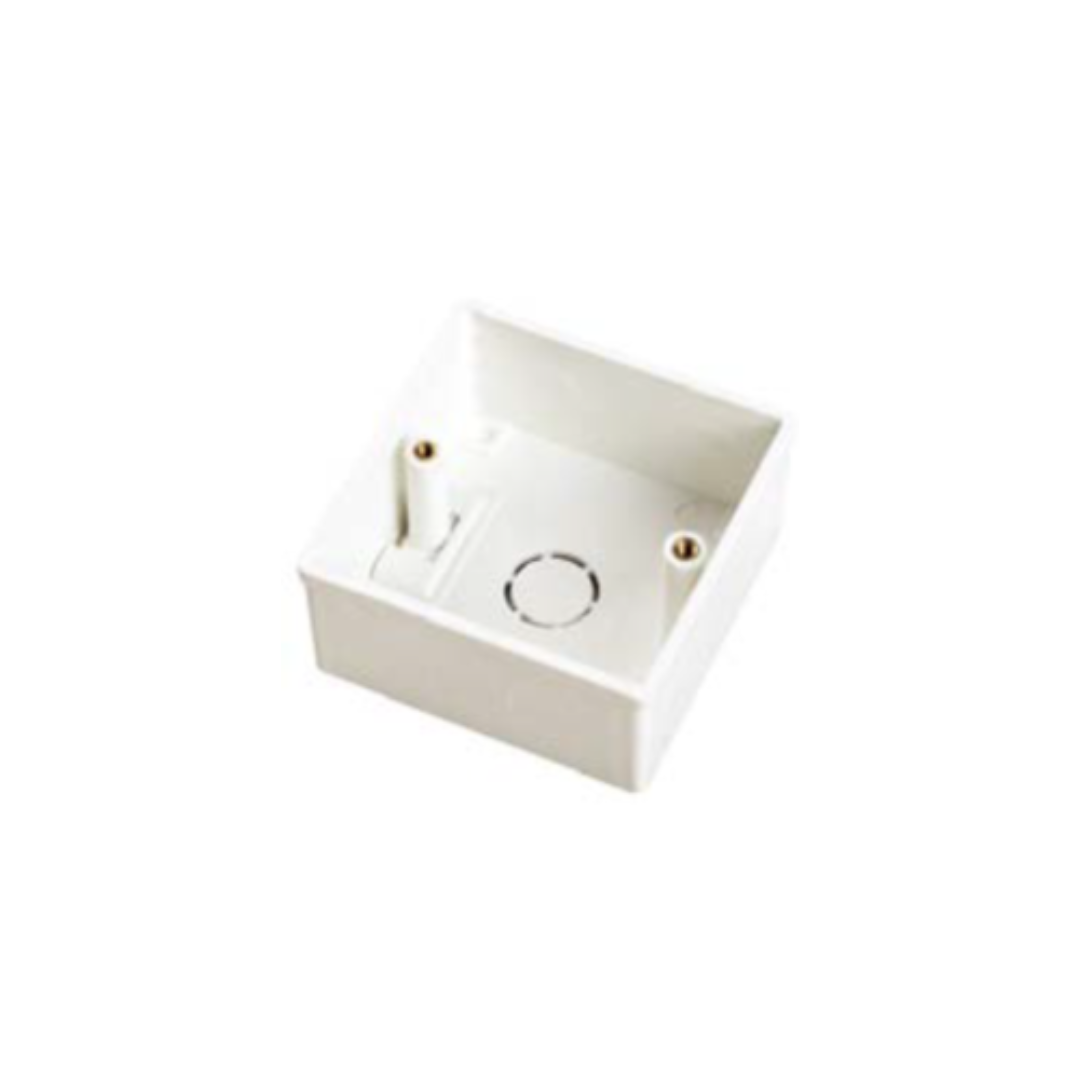

Surface Installation Gang Box
Tee

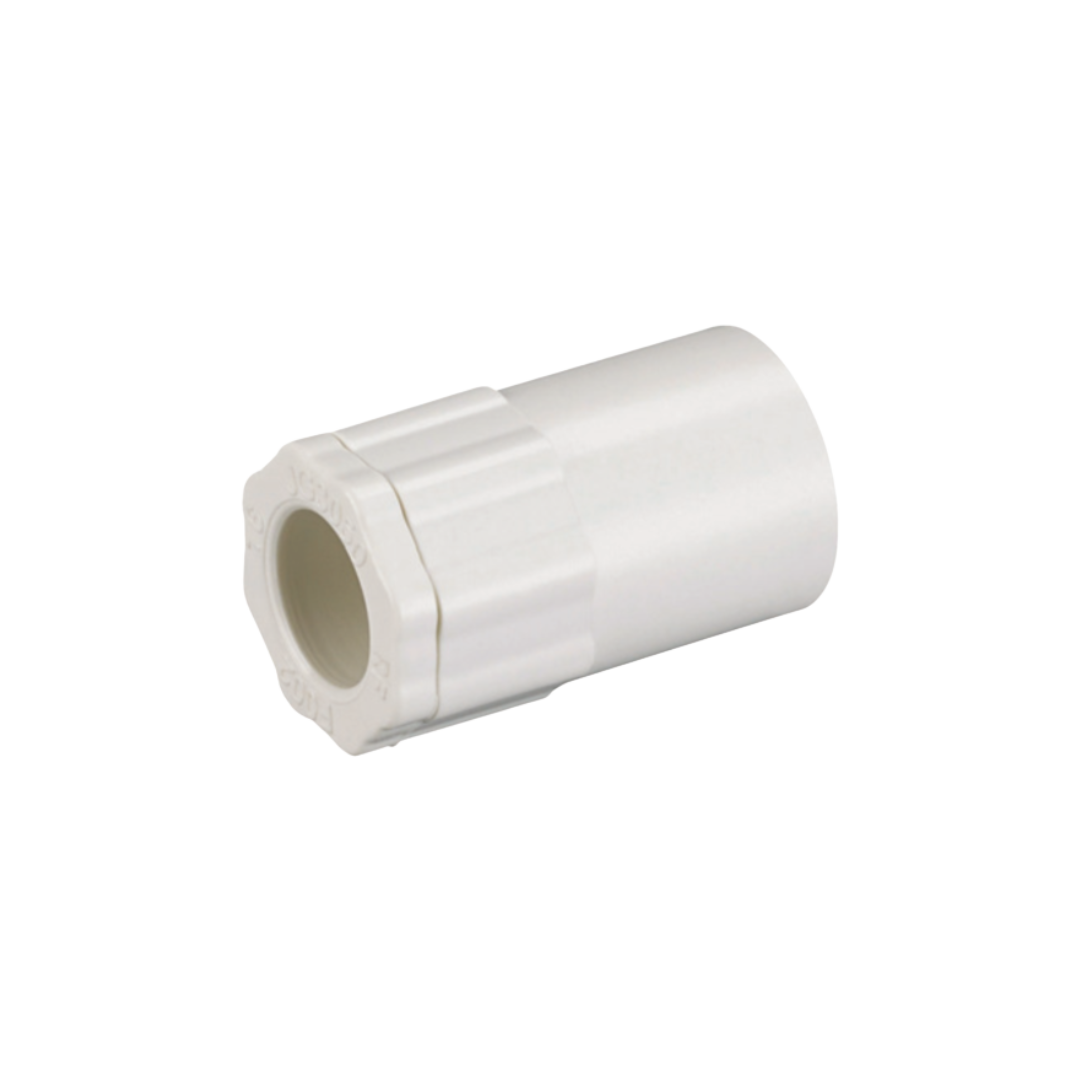

Terminal Adapter
Three Way Round Junction Box
Two Way Angle Round Junction Box

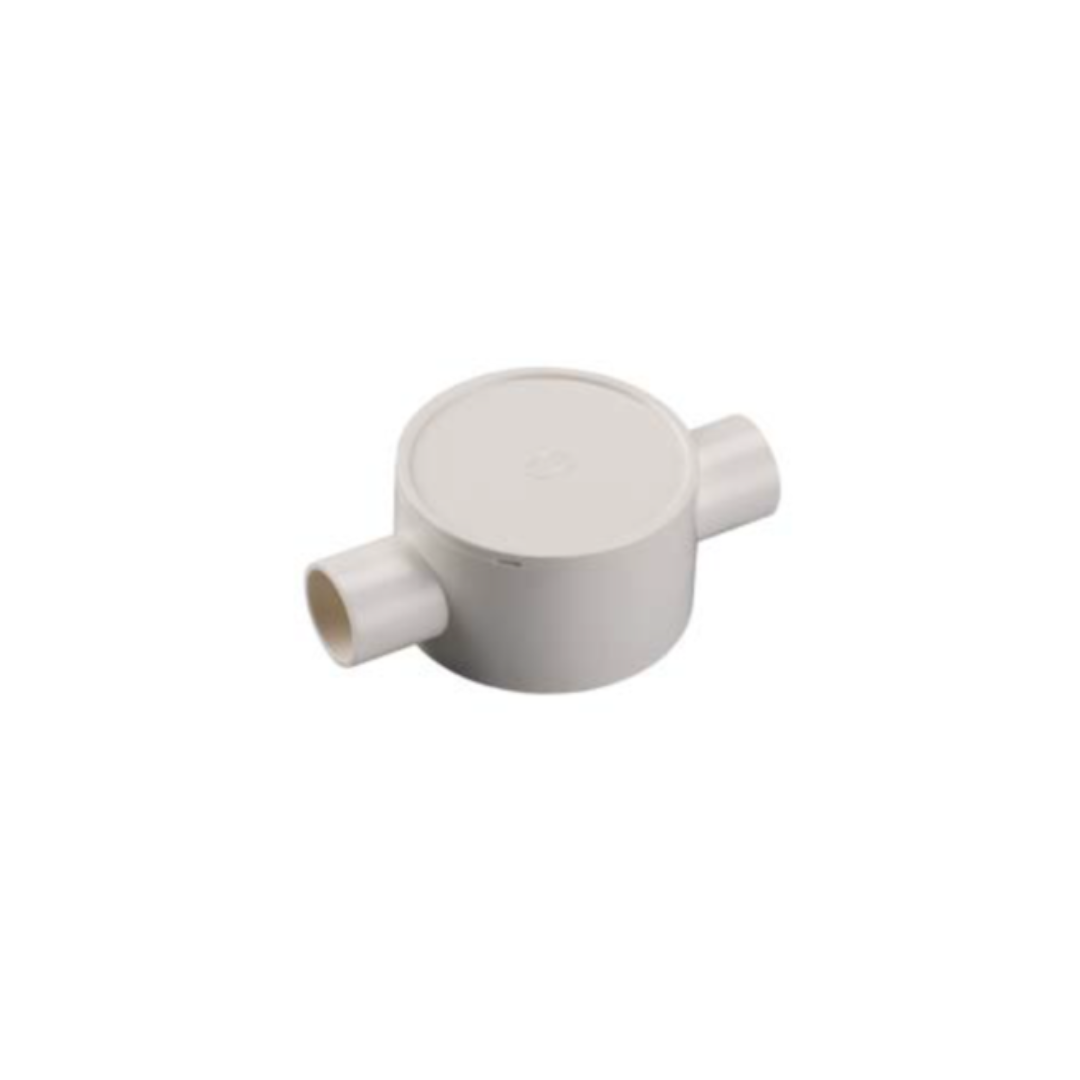

Two Way Through Round Junction Box
Tools & Accessories
Bending Spring
Pipe Cutter
PVC Adhesive

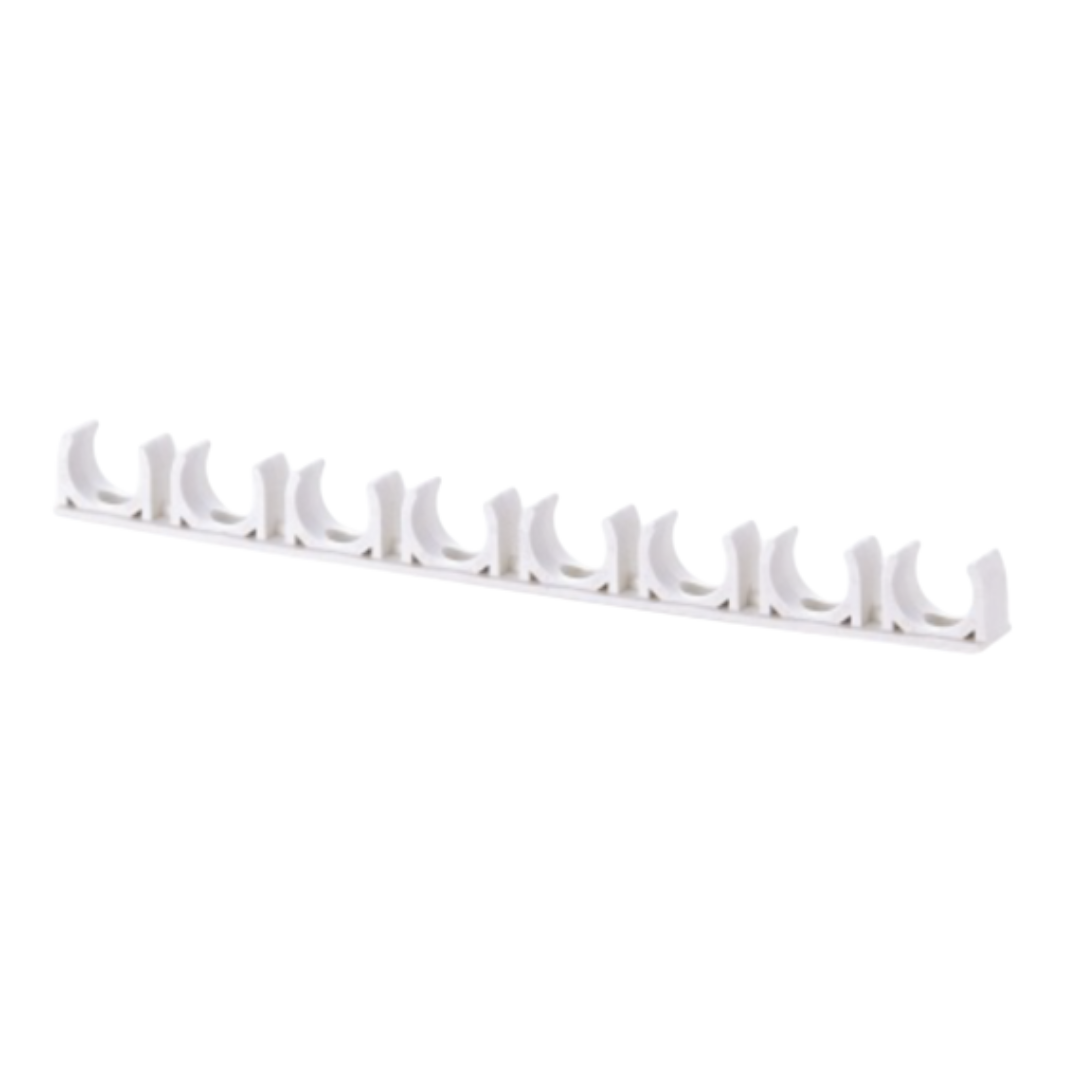

Row Clip
Performance Test
Download the Product Catalog
