RIFENG offers one-stop municipal piping solutions for global customers—covering water supply, drainage, irrigation, cable protection, trenchless piping, and more.
Product types include PE100, PE-metal composite, stainless steel, PERT, CPVC, UPVC, PVC-UH, MPP, corrugated pipes, Krah pipes, PP, and others—available in a wide range of sizes.
Key Features
Technical Specification
Pipe Physical Properties
Fitting Physical Properties
| Items | Property | Demand |
| 1 | Extension Rate at Break, % | ≥350 |
| 2 | Longitudinal Reversion (100°C), % | ≤3 |
| 3 | Oxidation Induction Time (210°C), min | ≥20 |
| 4 | Melt Mass-Flow Rate | The change rate of pipes and raw materials shall not exceed 25% |
| 5 | Static Hydraulic Pressure Test | 20°C, 100h PE100, 12.0Mpa; No crack or leakage |
| 80°C, 165h PE100, 5.4Mpa; No crack or leakage | ||
| 80°C, 1000h PE100, 5.0Mpa; No crack or leakage | ||
| Note: The static hydraulic pressure test at 80°C for 165 hours only considers brittle failure. If ductile failure occurs during the test time, select the lower ring stress according to the standard and retest according to the corresponding minimum failure time. | ||
| Items | Property | Demand |
| 1 | Oxidation induction time (200°C) | ≥20min |
| 2 | Melt Mass-Flow Rate | The change rate of pipes and raw materials shall not exceed 25% |
| 3 | Welding strength of electro fusion fittings | The percentage of brittle failure is no more than 33.3% |
| 4 | Socket fittings - Welding strength of butt welded fittings | Destructive testing result is ductile failure |
| 5 | Tapping Saddle impact strength | No crack or leakage |
| 6 | Static Hydraulic Pressure Test | 20°C, 100h PE100, 12.0Mpa; No crack or leakage |
| 80°C, 165h PE100, 5.4Mpa; No crack or leakage | ||
| 80°C, 1000h PE100, 5.0Mpa; No crack or leakage | ||
| Note: The static hydraulic pressure test at 80°C for 165 hours only considers brittle failure. If ductile failure occurs during the test time, select the lower ring stress according to the standard and retest according to the corresponding minimum failure time. | ||

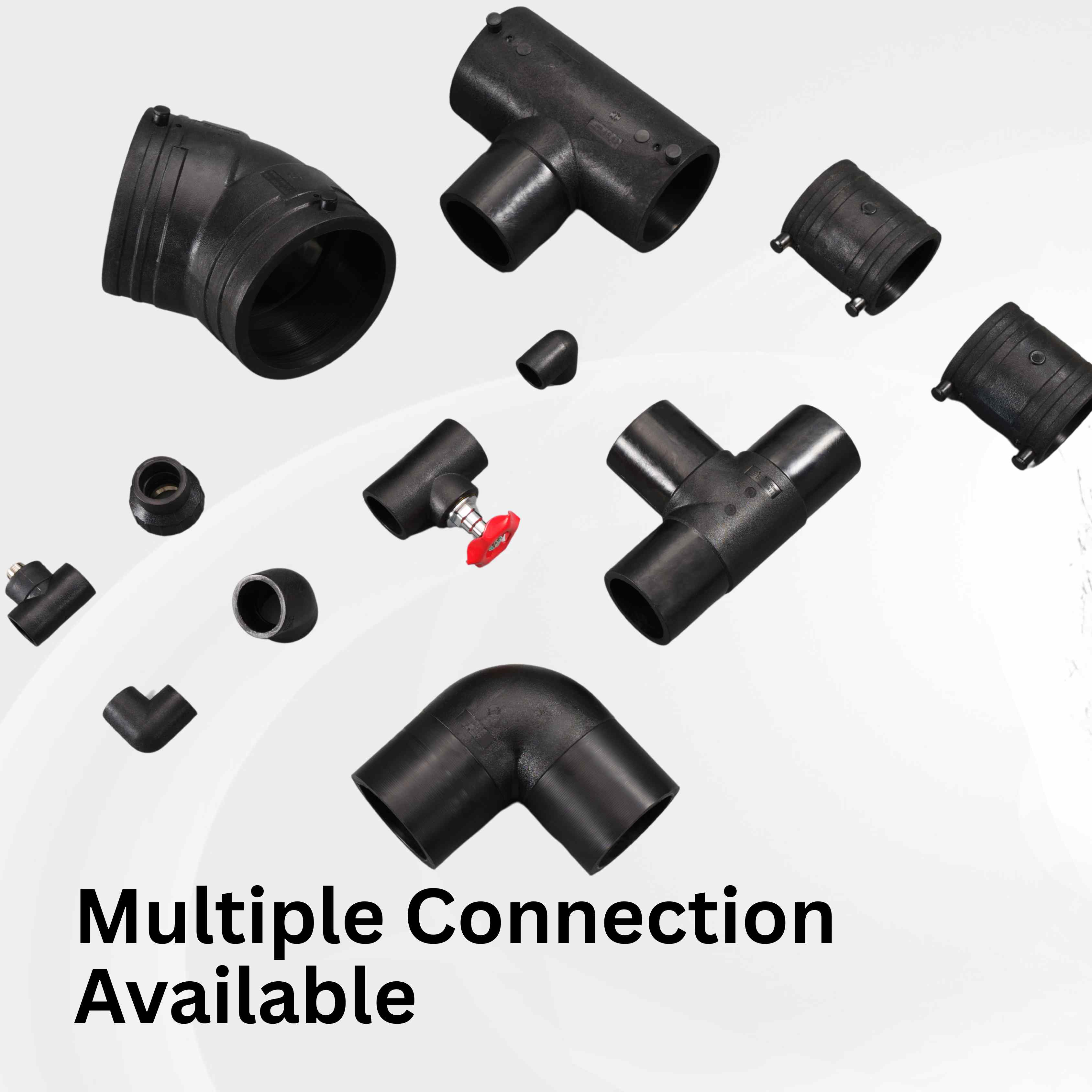

Products Overview
Socket Fusion Joint Fitting

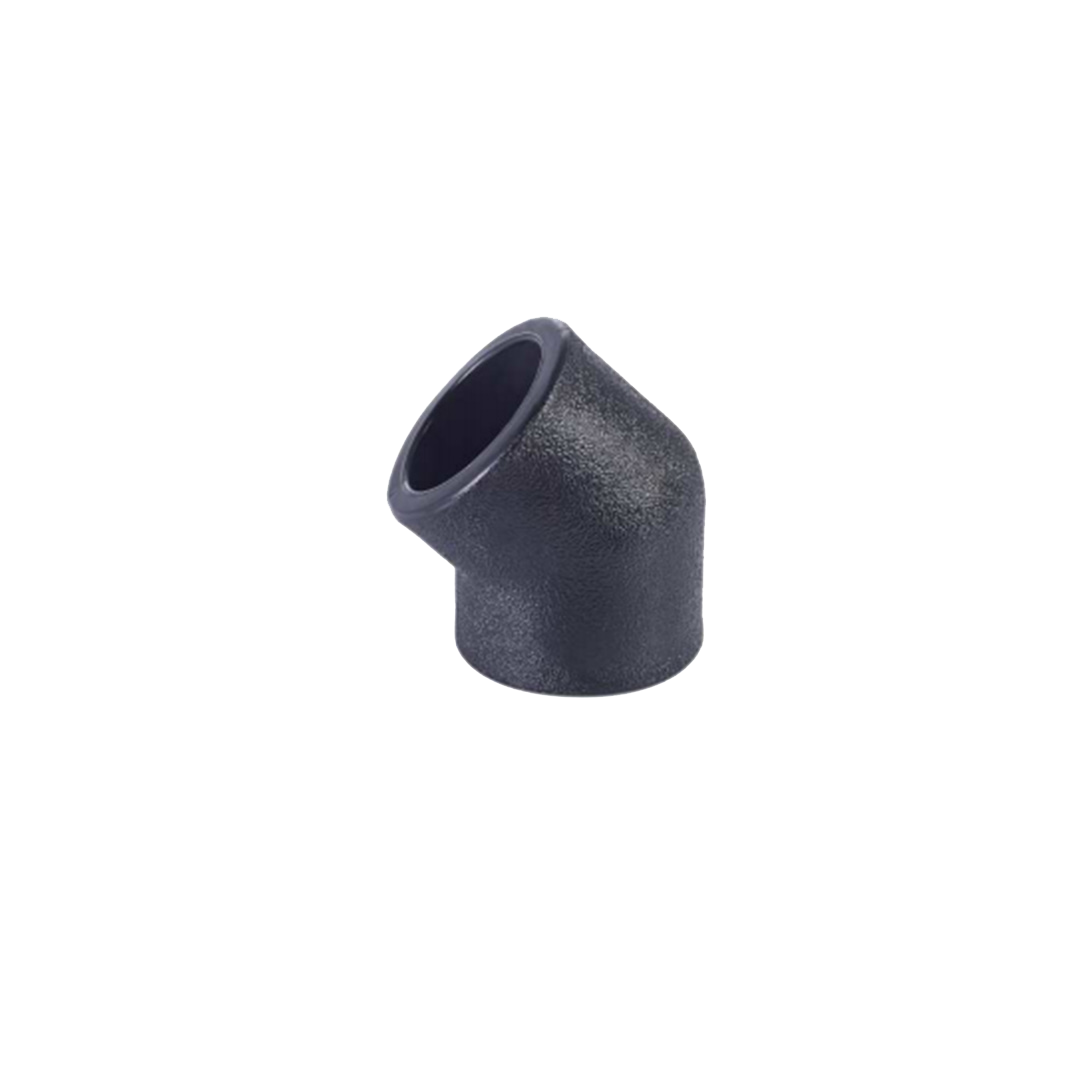

Elbow (45°)

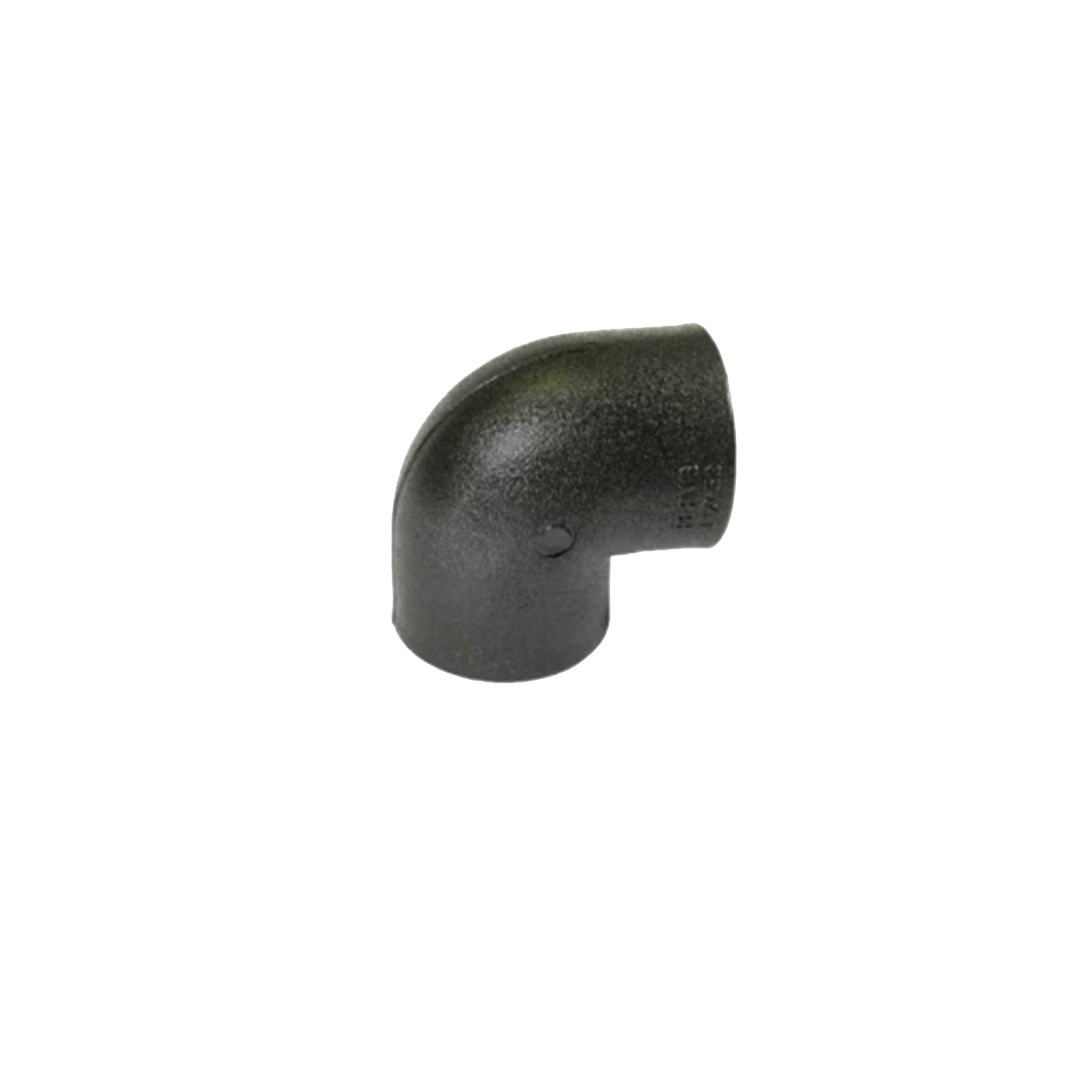

Elbow (90°)
End Cap
Female Coupling
Female Elbow
Female Tee
Flange (Steel Tray)
Flange Case
Male Coupling
Male Elbow
Male Tee
Reducing Coupling
Reducing Tee
Stop Valve
Straight Coupling
Tee
Butt Fusion Joint Fittings
EF Equal Tee

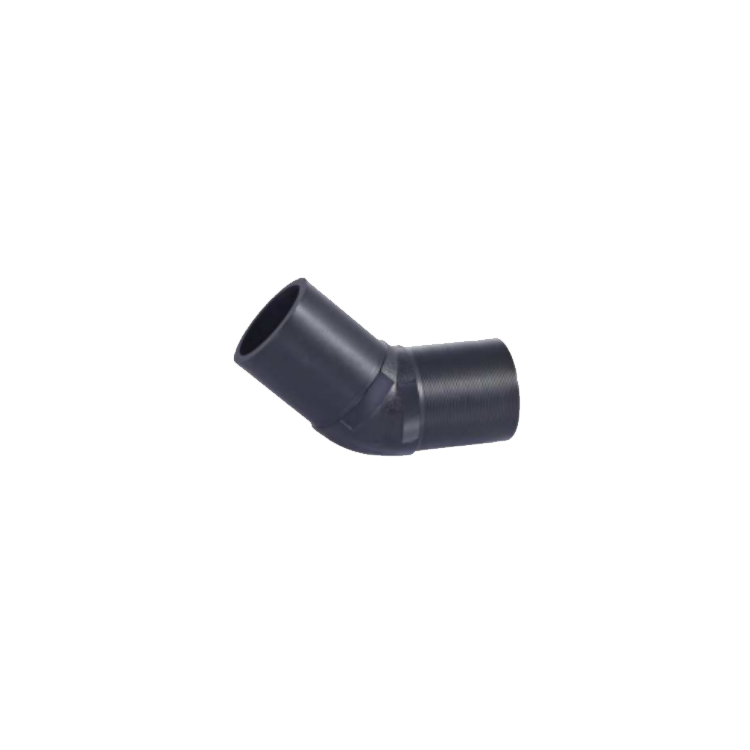

Equal Elbow 45 * PN1.0
Equal Elbow 45 * PN1.6
Equal Elbow 90 * PN1.0
Equal Elbow 90 * PN1.6
Equal Tee PN1.0
Equal Tee PN1.6

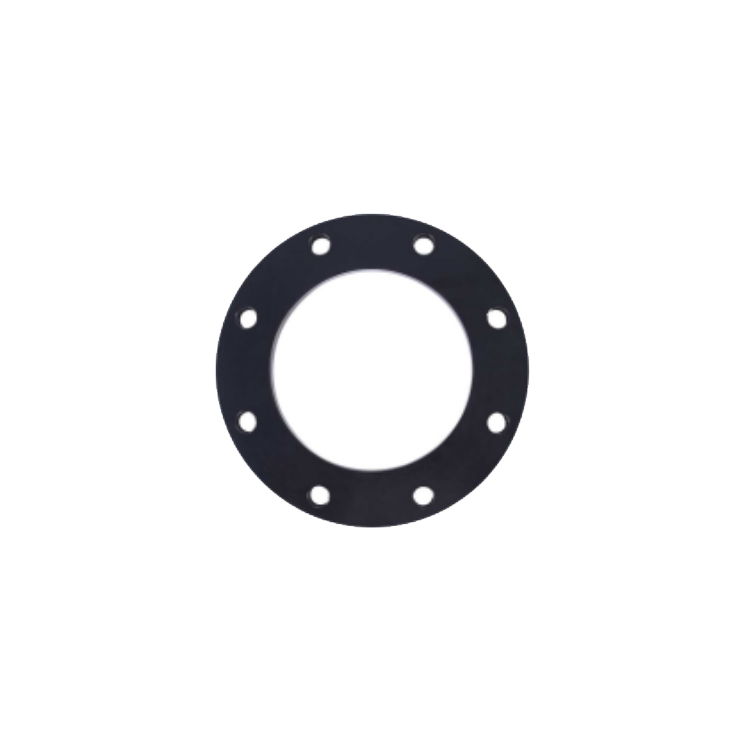

Flange (Steel Tray) PN1.0

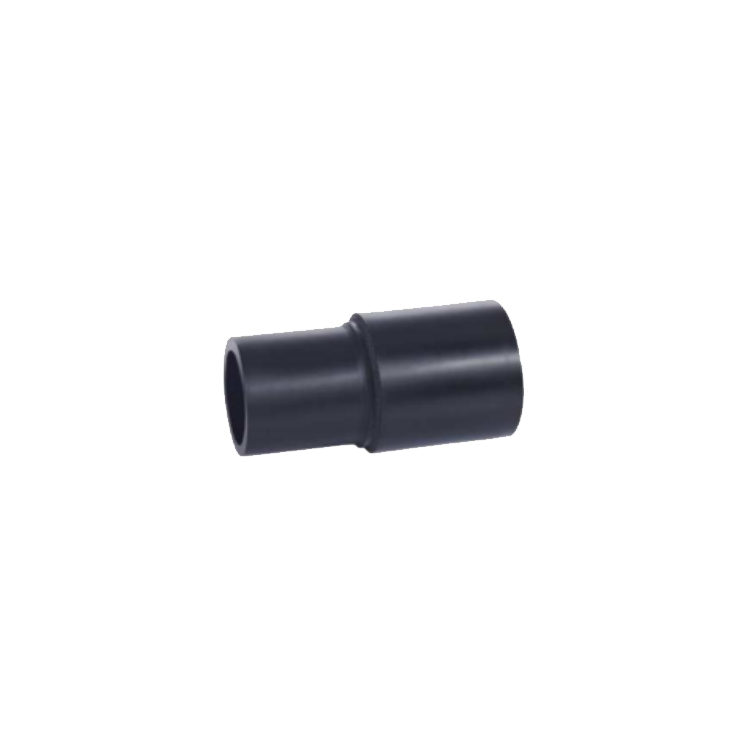

Reducer PN1.0
Reducer PN1.6
Reducing Tee PN1.0

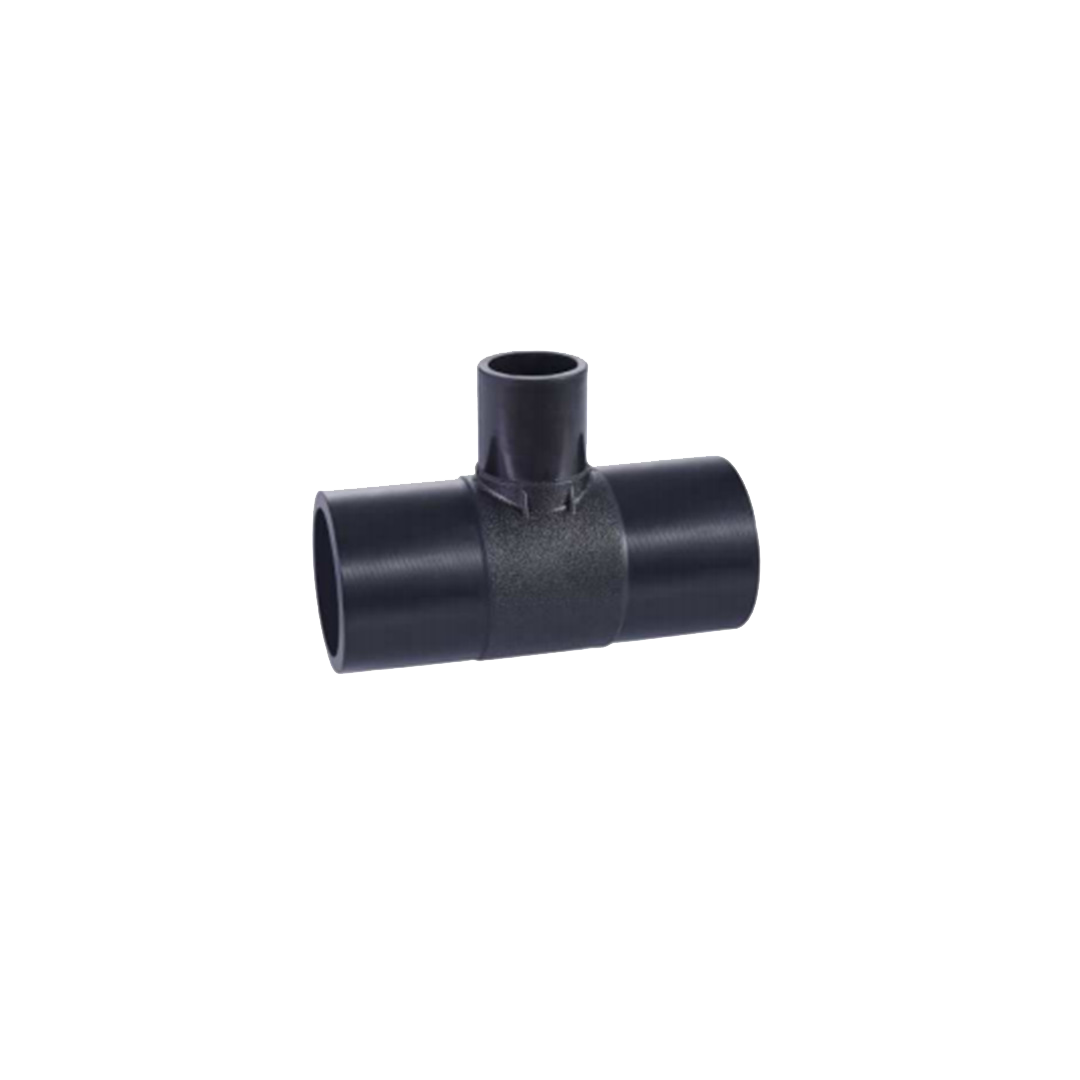

Reducing Tee PN1.6

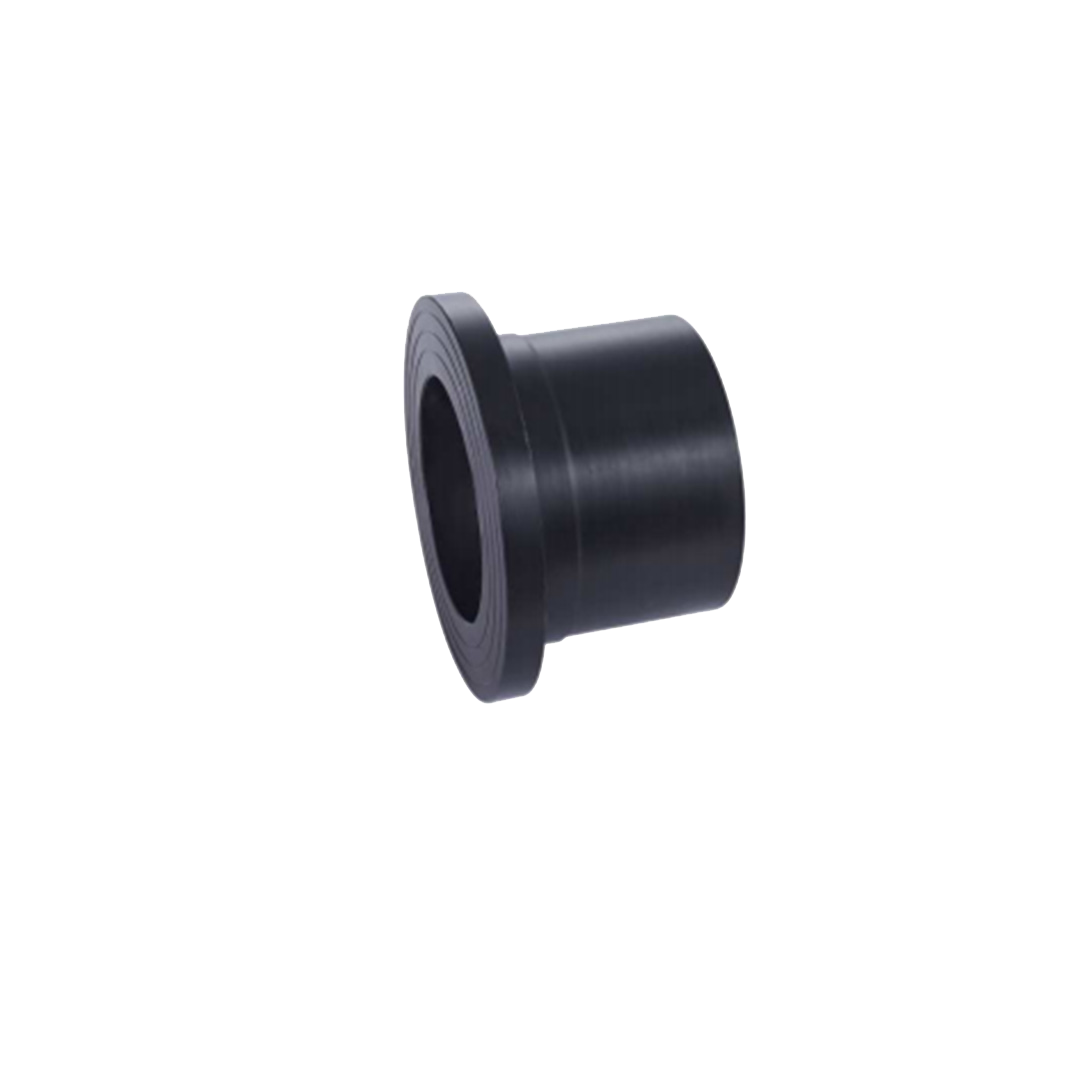

Stub Flange PN1.0
Stub Flange PN1.6
Electro Fusion Fittings
EF Elbow 90°
EF Reducer 2
EF Reducer
Installation Video
Download the Product Catalog
Municipal HDPE Pipeline System
HDPE Water Supply Pipes and Fittings Technical Data
What We Promise
25-year Warranty
RIFENG offers a 25-year warranty, underlining the long-term reliability and durability of our products.
Global Certification
RIFENG products meet international standards—including CE, WRAS, SAI Global, EPD—guaranteeing consistent quality and performance in all markets.
Product Liability Insurance
RIFENG provides Product Liability Insurance to protect partners’ legal and commercial interests, reflecting a commitment to safety and accountability.
