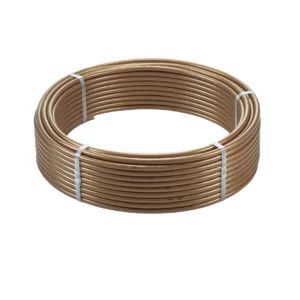

RIFENG Air Conditioning Piping System that combines the advantages of metal and plastic pipes leads the new trend in cooling. It performs well in resisting high pressure and temperature and leaves you cool in summer. It is a good alternative to copper pipes in cooling.
Technicial Specification | |
MateriaL | PAP |
Application | For air conditioning cooling only |
Termal Conductivity | 0.45W/(m ·K) |
Installation | Compression Fitting |
Install Fee | 70% |
Tickness | 1.5-3.5mm |
Flexibility | High |
Roughness | 0.7um |
Specifications | 0712,0912,1216,1620 |
Refrigerant | R-12,R-11,R-22,R410A,R404A,R134a,R407A,R407C,R32 etc |
Temperature Range | -40℃ to 60℃(40F to 140 F) |
Maximum Working Pressure | 3.8 Mpa(551psi) |
Color | Gold |
Vicat Softening Temperature | ≥105℃ |
Cofficient of Thermal Expansion | 0.025mm/m ·k |
Pipe surface Roughness | 0.7um |
Thermal Conductivity | 0.45W/(m ·K)(Cu 100W/(m ·K)) |
Bending Radius | 5 times OD |
Tensile Strength | ≥21MPa |
